GNU C/C++ compiler collection build

for bare metal development on NUC970 processor series

This part of the BSP project do not officially supported by Nuvoton Technology Corp.

https://github.com/OpenNuvoton/NUC970_NonOS_BSP/issues/3

Currently we (Nuvoton) only plan to support Keil development environment in NUC970 bare bone BSP.

GNU toolchain includes this packages

• binutils: assembler, linker, ELF and library file tools
• gcc: C/C++ compiler
• gdb: debugger
• gprof: profiler

Package versions

Directories will be used for build & install

directories for build and install :

• CWD
  • current directory where make was first run
  • (full specified path /home/user/NUC970_NonOS_BSP/gnu)
• GZ=$HOME/gz
  • archives: directory where .tar.?z files resides (toolchain packages source code)
  • if you frequently use Buildroot it is good to share all source code in one directory in your home path
• TMP=/tmp
  • temp directory for source code unpack and build
  • for most software build in Linux source code directory does not used, but separated build preferred for most cases out of source tree
• SRC=/tmp/src
  • directory for source code unpack
• SYSROOT=$CWD/sysroot
  • sysroot is a directory where /include and /library files resides
• CROSS=$CWD/cross
  • cross-compiler toolchain will be installed into this directory
  • we will not put builded toolchain system-wide as it traditionally can be done in /usr/local by defeault: it requires root access and will affect all users on a developer workstation
  • inplace we'll install it directly into NUC970_NonOS_BSP/gnu directory and define special $XPATH variable used in all Makefiles to prefix cross-compiler $PATH before system one

make dirs

If you want to follow build process step by step manually, this is a first command creates directory structure required for build toolchain from source code

``` BSP/gnu$ make -f nuc976.mk dirs `` Note then you must run it inBSP/gnudirectory `` ~/BSP/gnu/nuc976.mk ~/BSP/gnu/toolchain.mk

~/BSP/gnu/cross ~/BSP/gnu/sysroot ~/BSP/gz /tmp /tmp/src ```

Download source code packages

``` BSP/gnu$ make -f nuc876.mk gz ```

We'll skip this step assuming you already used BUildroot with /home/user/gz as a directory for its source code archive.

Configuration

Source build of every package is managed by autotools, which generates special configure script resides in every source code package.

Every make package command

• extracts source to $SRC/packagename-versiondirectory,
• runs configure in out-of-tree build directory in $TMP/packagename-version
• and finally run long $MAKE process which build package and installs it in $CROSS

To control every package confgiguration we use $CFG_PACKAGE variables

• CFG_ALL will be the first argument for configure
  • --disable-nls
    • switch off cross-compiler localization: all messages will be in english only
  • --prefix=$CROSS
    • setup installation directory for all packages

binutils: assembler, linker and object file tools

• CFG_BINUTILS
  • --with-sysroot=$SYSROOT
    • setup $SYSROOT directory which will contain /include and /library files (some include files will reside in gcc installation)
  • --with-native-system-header-dir=/include
    • set system /include directory relative to sysroot
  • --enable-lto
  • --target=$TARGET
    • select target system architecture by triplet
  • $CFG_CPU
    • provide flags specific for concrete $CPU you want to use

$TARGET and $CPU must be configured before toolchain.mk will be run, so we use

```nuc976.mk

ARCH = arm CPU = arm926ej-s TARGET = -none-eabi

CFG_CPU = –with-cpu=

-include toolchain.mk ```

Run build command:

``` BSP/gnu$ make -f nuc976.mk binutils ```

Make target first tests is source code ready:

```toolchain.mk binutils: //configure ```

Source code unpack

All makefile targets makes packet build uses automatic dependency resolving:

• package build requires source code unpacked
• to unpack source code we need downloaded .tar.xz in $GZ
• if we have no source code archive, we $WGET it (see make gz above)

``` //configure: /binutils/ cd ; xzcat $< | tar x && touch $@ ```

When you run any package build it will first unpack source to $SRC:

``` BSP/gnu$ make -f nuc976.mk binutils cd /tmp/src ; xzcat /home/dpon/gz/binutils/binutils-2.29.1.tar.xz | tar x && touch /tmp/src/binutils-2.29.1/configure ```

Package build: makefile section structure

``` [1] .PHONY: binutils [2] binutils: //configure [3] [4] rm -rf /binutils ; mkdir /binutils ; cd /binutils ;\ [5] $< &&\ [6] -j4 &&\ [7] install [8] ```

1. declare that this make targets is not files, but just a names:
   • make tool will not check filesystem for this names to find what files were updated, and what files must be rebuilt by dependency
2. make targets
   • all file names (targets) in left side of a make rule point on files which should be rebuilt...
3. make sources
   • ...if any file in sources list changed
4. make rule body must be padded with TAB symbols, no spaces
   • make rule body contains generic OS commands must be run for targets update
   • In make rule commands you can substitute sources and tagets using pseudovariables:
     • $< first source name
     • $^ full sources list splitted by spaces
     • $? only changed sources list
     • $@ target name
5. (re)create empty directory for out-of-tree build
6. run source package configure creates set of script files will be run build itself
7. make in parallel with -jN (N can be equal to number of processor cores on your workstation desktop)
8. install builded package into $CROSS (--prefix)

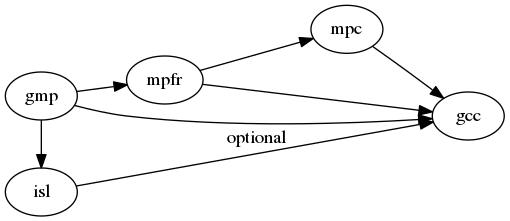

libs0: support libraries required for GCC build

For gcc build we require a set of support libraries. We can rely on libxxx-dev packages provided by your Linux distribution, but for devkit portability we'll build them from sources like a part of this toolchain build.

• gmp
• mpfr <- gmp
• mpc <- mpfr
• isl <- gmp
  • loop optimizations

``` BSP/gnu$ make -f nuc976.mk libs0 ```

gcc0: standalone C compiler for libc build

On first stage we need minimal C compiler with all features disabled, able to build code without use of standard C library (libc).

gcc has deep bound with libc, so to build libc we need standalone gcc

CFG_GCC0

• --enable-languages="c"
  • we need only pure C for libc build
  • C++ can be added only after libc will be available (dynamic memory management and multiprocessing required for C++ runtime)
• --without-headers --with-newlib
  • disables libc usage for programs build
• --disable-shared --disable-threads
  • switch off features can't be used w/o libc

``` gcc0: //configure [1] rm -rf /gcc ; mkdir /gcc ; cd /gcc ;\ [2] $< &&\ [3] -j4 all-gcc && install-gcc &&\ [4] -j4 all-target-libgcc && install-target-libgcc [5] ```

1. package : source code
2. out of tree build directory
3. configure
4. build & install only gcc core
5. build & install only libgcc

``` BSP/gnu$ make -f nuc976.mk gcc0 ```

gdb: GNU debugger

We need it for GNU gdb remote debugging

``` BSP/gnu$ make -f nuc976.mk gdb ```
